This new remote access malware creates a second desktop that is invisible to the system's user. The threat actor can surf the Internet using the infected machine.
SectopRAT is a .NET based remote access malware. The sample was originally found by MalwareHunterTeam and announced in a tweet on 15. November 2019. It was compiled on 13. November 2019. Using the following Yara rule we were able to obtain a second sample that was compiled on 14. November 2019 and submitted a day later to Virustotal.
author = "Karsten Hahn at G DATA CyberDefense AG"
$s_1 = "RemoteClient\x00"
$s_2 = "InitHDesktop\x00"
$s_3 = "InitBrowser\x00"
$s_4 = "EnoghtSpace\x00"
$s_5 = "SPI_SETSCREENSAVEACTIVE\x00"
all of them and
uint16(0) == 0x5A4D
The first sample is signed by Sectigo RSA Code Signing CA, uses a Flash icon and has the following Version Information.
language ID: 0x0409
code page: 0x04B0
Comments: Idito PleasweN MinIMus Inc.
ProductName: Idito PleasweN MinIMus Inc.
The second sample is not signed and uses an icon that looks like a red floppy disk. The Version Information looks different too but follows a similar pattern of upper and lower case combinations in a jumble of arbitrary words.
language ID: 0x0409
code page: 0x04B0
Comments: errORs KilEfnos INCreASe MY Wife
CompanyName: LAkoRasen Kuscev MeaninG Jow
LegalCopyright: FAW ISir Polaris ComapNY
LegalTrademarks: investORS Leanda MikiRUck
The first section of both samples has arbitrary characters for its name and has write and execute characteristics. The 5th and last section has no name and contains the entry point. The other sections look rather typical.

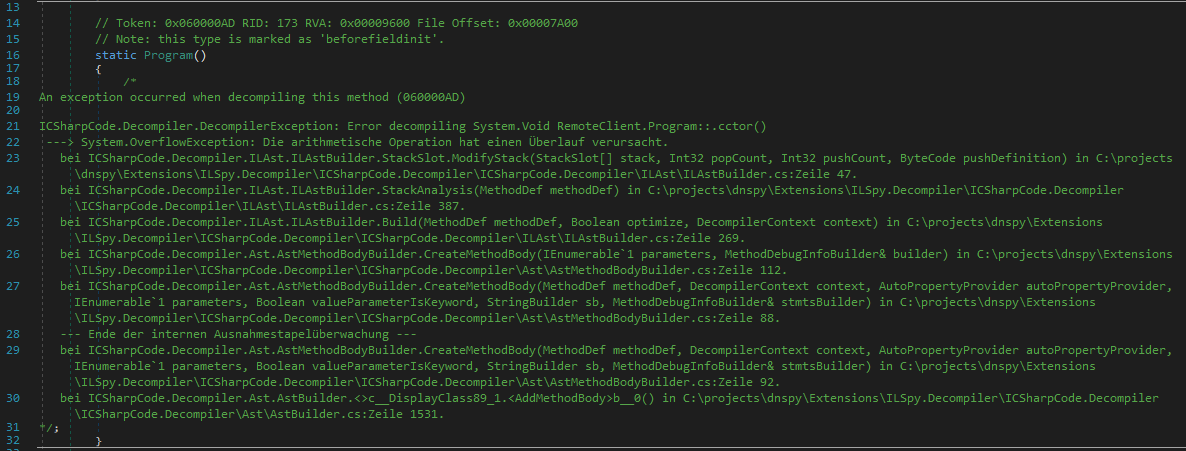

The threat actor used ConfuserEx to obfuscate the control flow and add anti-tamper to the .NET assembly. The anti-tamper prevents tools like DnSpy from decompiling the code (see picture below).

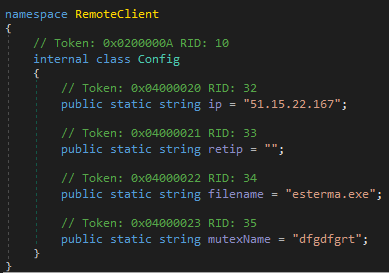

The assembly has a RemoteClient.Config class containing four public static variables for the configuration: ip, retip, filename, mutexName. The ip is the Command and Control (C&C) server IP. The retip variable is for setting a new C&C IP that the server can override by using the "set IP" command. The configuration is the same for both SectopRAT samples.
The variables filename and mutexName are set but not used in the code. Instead it uses a hardcoded filename, spoolsvc.exe, and copies itself to %LOCALAPPDATA%\Microsoft\
Persistence is achieved by adding spoolsvc.exe to the RUN key in the registry.
Note that the legitimate Print Spooler Service system file by Microsoft is named spoolsv.exe
SectopRAT command and control operates with packet types which are distinguished by a certain byte value in every packet.
|Handle mouse event
|Handle keyboard event
|Get codec info (not implemented)
|Send computer info

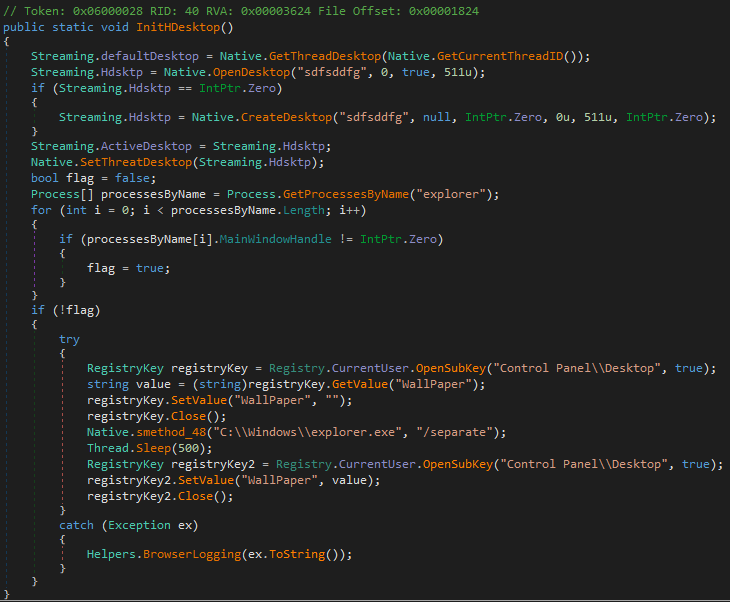

The "Start stream" packet will either stream the current desktop or create another desktop using the hardcoded desktop name "sdfsddfg". The second desktop is not visible to the person who sits in front of the infected computer. The threat actor however can use "Init browser" to surf the Internet via the second desktop on the infected system.
The "Init browser" packet has support for running Chrome, Firefox or Internet Explorer. It will change browser configuration, use start parameters and modify registry settings to disable security and make the browsers faster. E.g. for Chrome it disables sandboxes, the graphics cache and graphics options like 3d-apis, flash-3d, gpu-rasterization, gpu-vsync. The browser paths are hardcoded and don't use any environmental variables, which limits compatibility of the RAT.
The "Send computer info" packet will send the operating system name, the username, an id that is based on a randomly created path name and a hash value that is based on hardware information like the processor name, the number of cores and RAM.
"Get codec info" is not implemented yet. The client does not do anything.
"Set IP" makes it possible to change the IP of the C&C server.
SectopRAT is used in the wild but still looks unfinished and in parts hastily done. Some of the class names and also the name of the second desktop look like they were produced while trying to type arbitrarily on the keyboard because the keys are right next to each other and repeated by finger motion.
Despite obvious flaws like using hardcoded paths without environmental variables to access system files, the RAT's architecture, the use of a second desktop and changes in browser configuration files and parameters show some internal knowledge that is far from a greenhorn. It is quite possible that the first samples in the wild are merely for testing. We expect to see new versions with additional features in the future.
|Deobfuscated SectopRAT
