Malware by the (Bit)Bucket: Unveiling AsyncRAT

10/10/2024
G DATA Blog

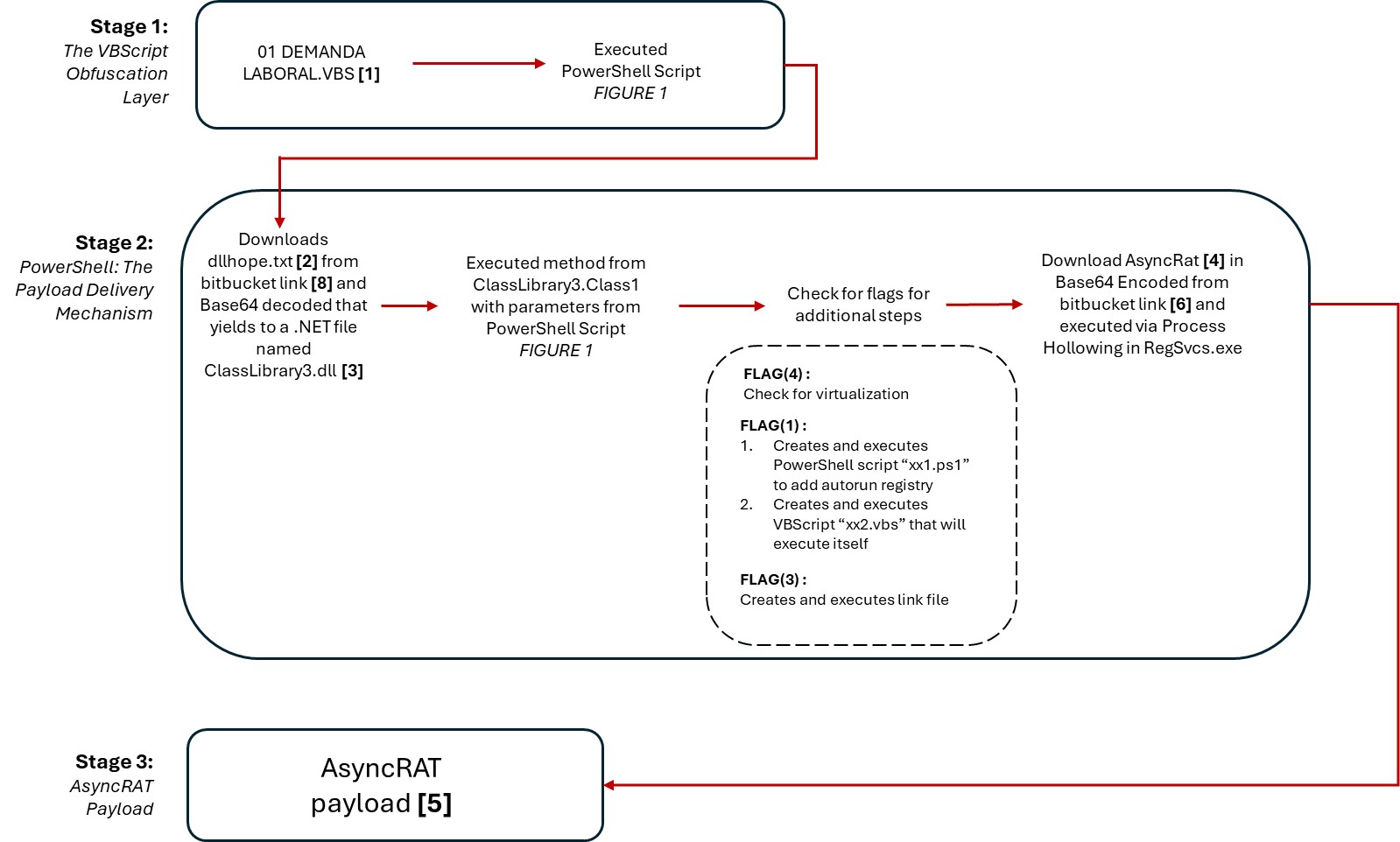

Recently, we uncovered a sophisticated attack campaign employing a multi-stage approach to deliver AsyncRAT via a legitimate platform called Bitbucket.

An analysis by Lovely Antonio & Lance Go

We wanted to learn how Bitbucket is exploited to download the payload. Several layers of base64 were used to hide the code from plain sight. After peeling back those layers we wer able to uncover the full story and key indicators of compromise (IOCs) we found while analyzing the AsyncRAT payload delivery.

Using Bitbucket as a Malware Repository

Attackers have turned to Bitbucket, a popular code hosting platform, to host their malicious payloads. Some examples of malware utilizing bitbucket includes Predator stealer, Azorult stealer and STOP ransomware. This approach presents several advantages for the attackers:

  • Legitimacy: Bitbucket is a widely used platform for legitimate software development and collaboration, making it less likely to raise suspicion among security solutions.

  • Accessibility: Bitbucket public repositories allow attackers to easily share and distribute their payloads to a wide audience.

AsyncRAT exploits various attack vectors, including phishing emails with malicious attachments [1], drive-by downloads from compromised websites, and exploit kits targeting software vulnerabilities.



Stage 1: The VBScript Obfuscation Layer

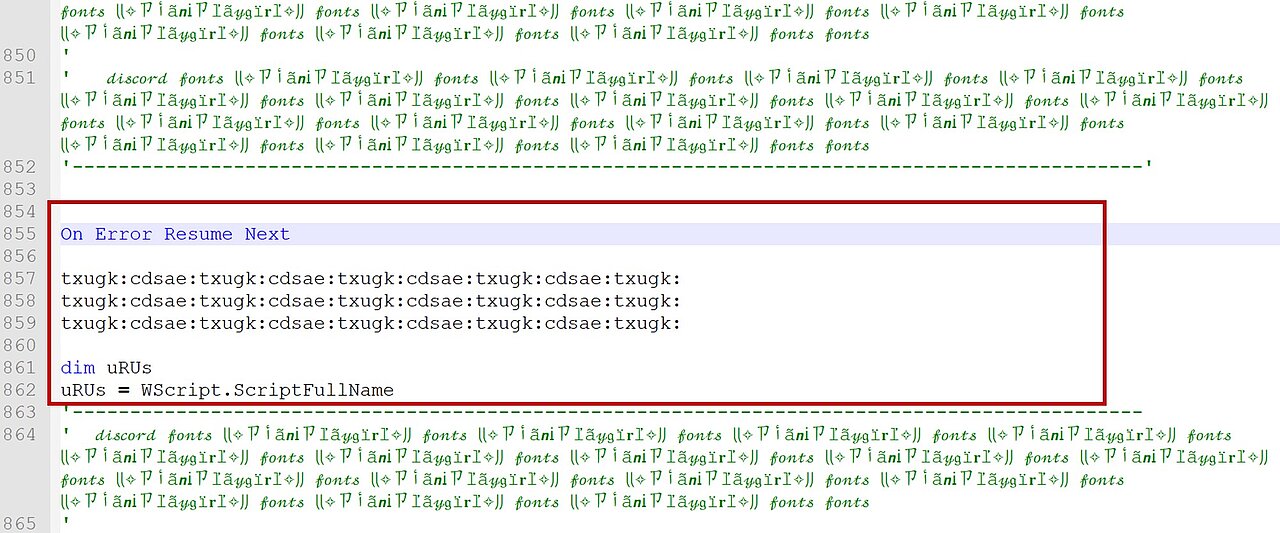

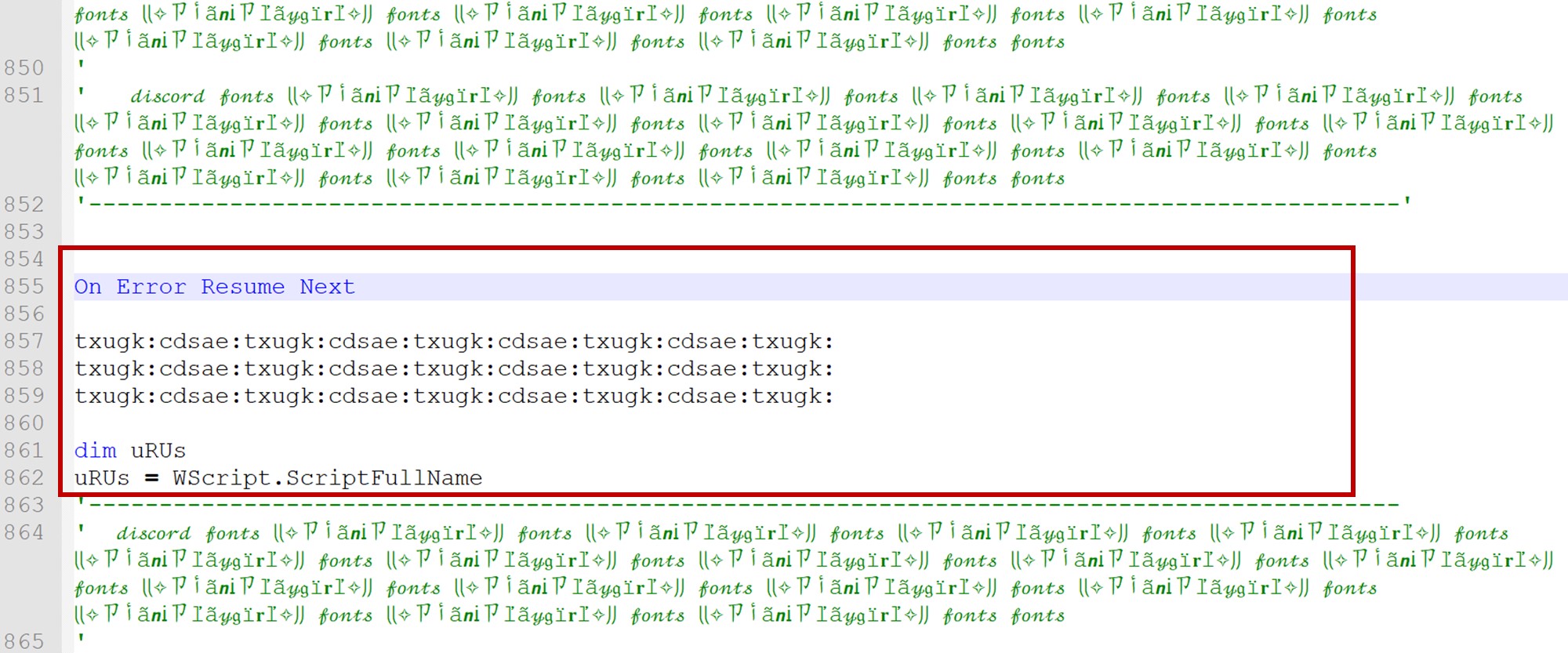

A sample named “01 DEMANDA LABORAL.vbs”[1] was submitted to our sample submission platform for analysis.  The VBS file upon initial inspection shows what appears to be gibberish (see figure 2). Upon closer inspection, a hidden code can be found within the file (see figure 3).

The script is designed to obfuscate and execute a PowerShell command. It utilizes string manipulation, Base64 encoding, and powershell -command execution to achieve its goal. The code reveals that a variable “QpWJ” (seen in figure 3) is encoded in Base64 together with a simple character replace.

Stage 2: PowerShell: The Payload Delivery Mechanism

The VBScript constructs and executes a PowerShell command, effectively transitioning the attack to the next stage. The decoded PowerShell command provides a clearer picture of the malicious activity (see figures 4 and 5).

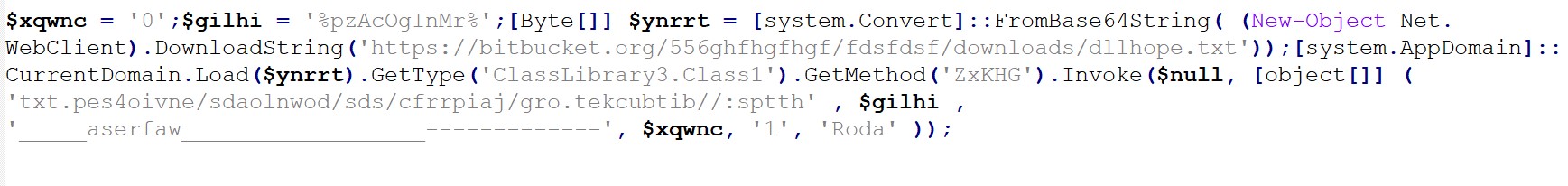

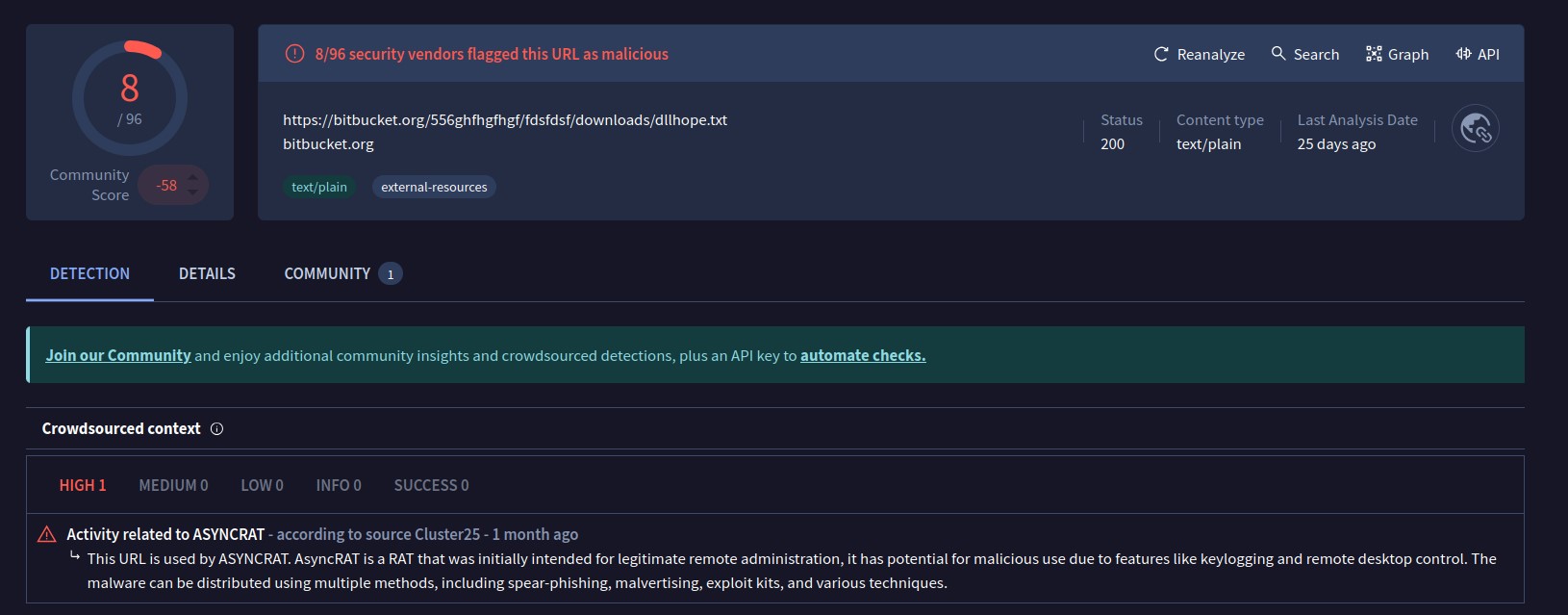

The code (figure 5) downloads a file named dllhope.txt[2] from a Bitbucket repository. It is also worth noting that VirusTotal marked the URLs used by the script to be associated with AsyncRAT (see figure 6).

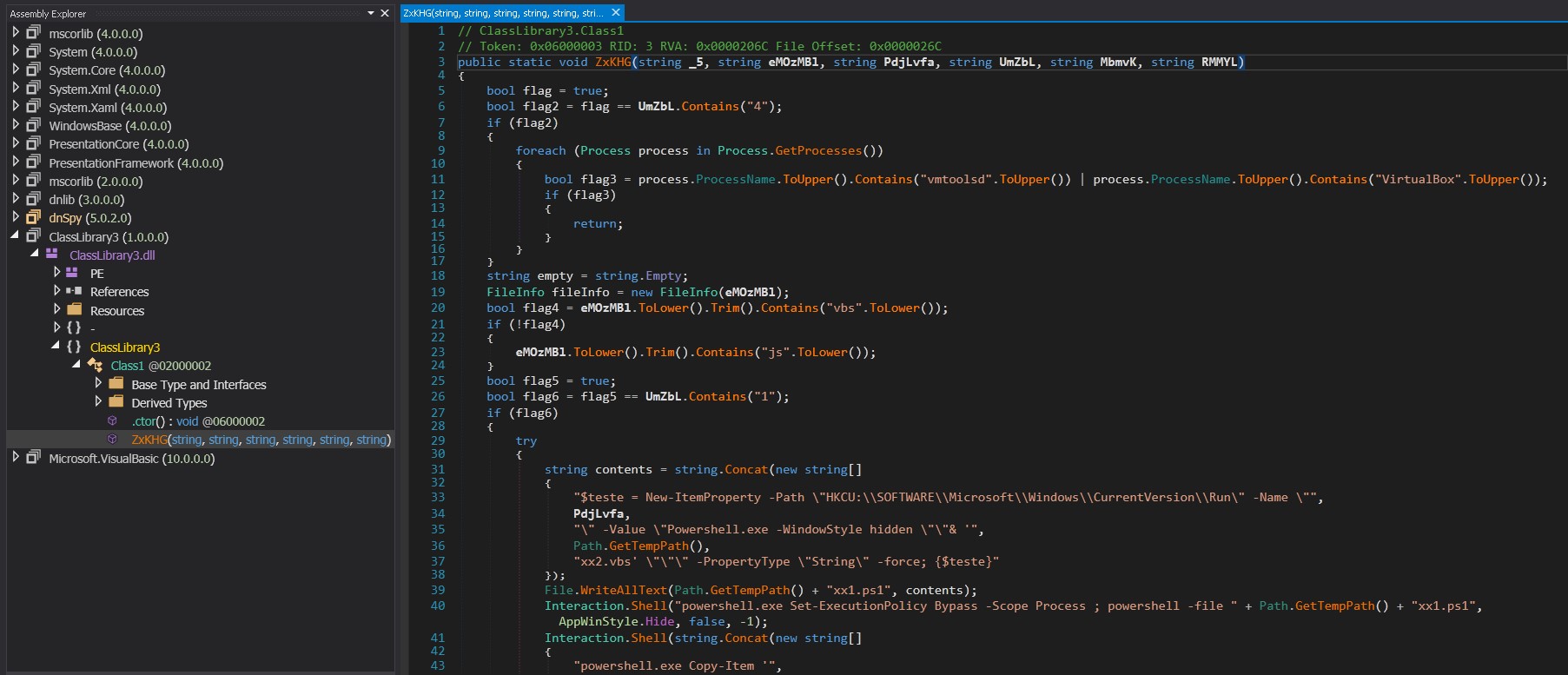

Opening the ClassLibrary3.dll [3] file in DNSpy reveals the code and the method “ZxKHG” together with the six parameters needed. The passed arguments can be found in the initial script [1].

The method parameters are as follows:

  • _5 is a URL to fetch data from the reversed URL
  •  'txt[.]pes4oivne/sdaolnwod/sds/cfrrpiaj/gro[.[tekcubtib//[:spxxh'
  • (‘hxxps://bitbucket[.]org/jaiprrfc/sds/downloads/envio4sep[.]txt’)
  • eMozMBl holds the full path of the VBScript file
  • PdjLvfa is used for naming and creating shortcuts
  • UmZbL contains the value '1', likely indicating a configuration setting or feature flag.
  • MbmvK was not used by the method at the time of analysis
  • RMMYL was not used by the method at the time of analysis

The code section highlighted in Figure 8 is reflectively loaded using [system.AppDomain]::CurrentDomain.Load. This technique allows for in-memory execution, bypassing traditional security mechanisms that use pattern scanning on files. The ClassLibrary3.dll[3] reveals the core functionality of the attack, including persistence mechanisms and the execution of the downloaded payload - AsyncRAT. A flag parameter, UmZbL, dictates how the code will proceed.

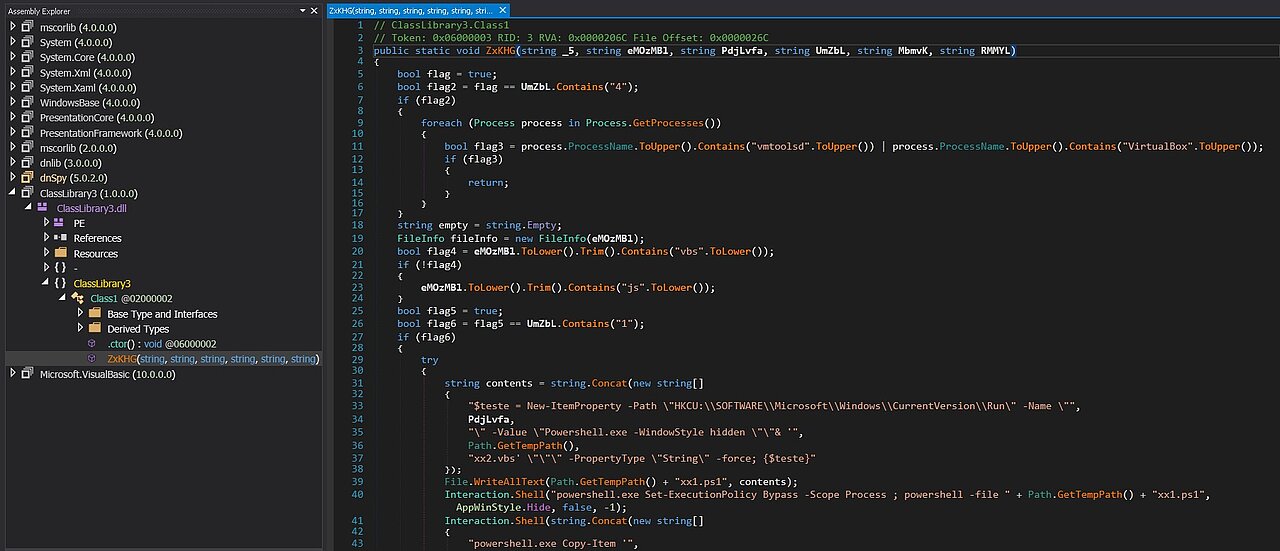

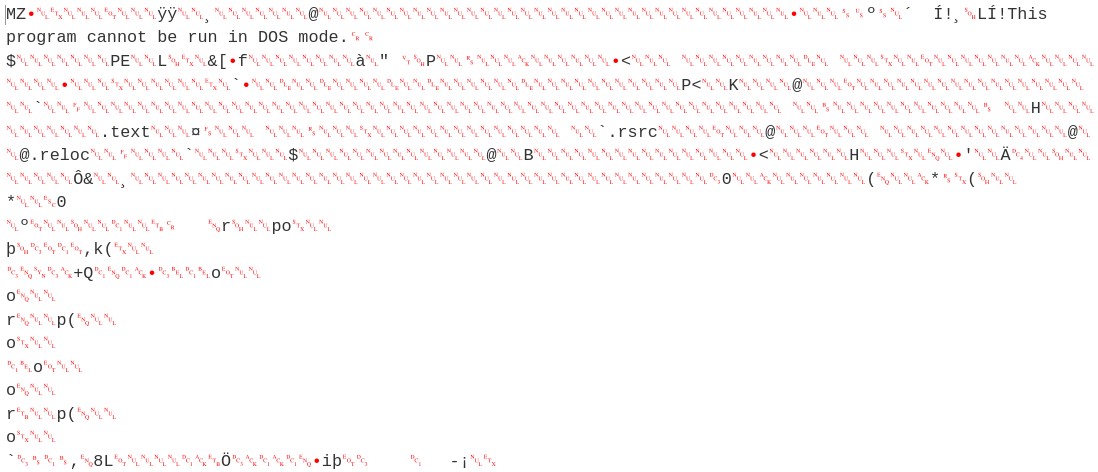

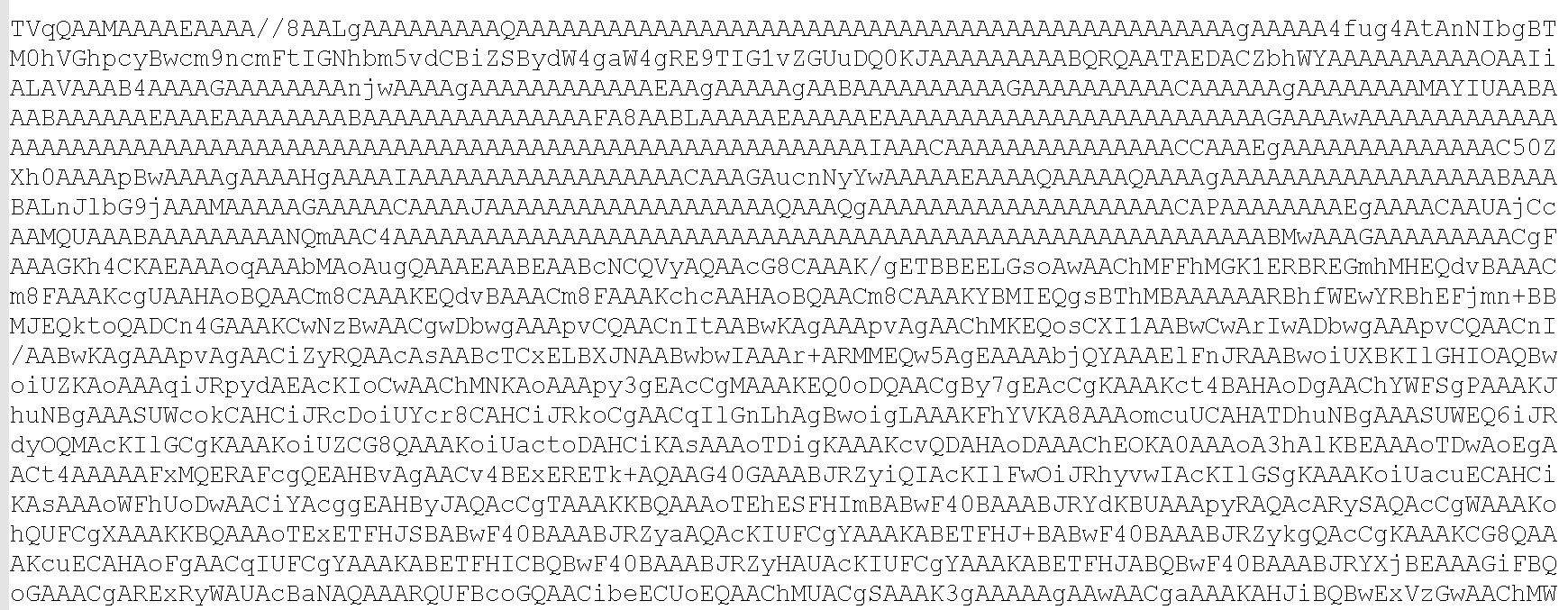

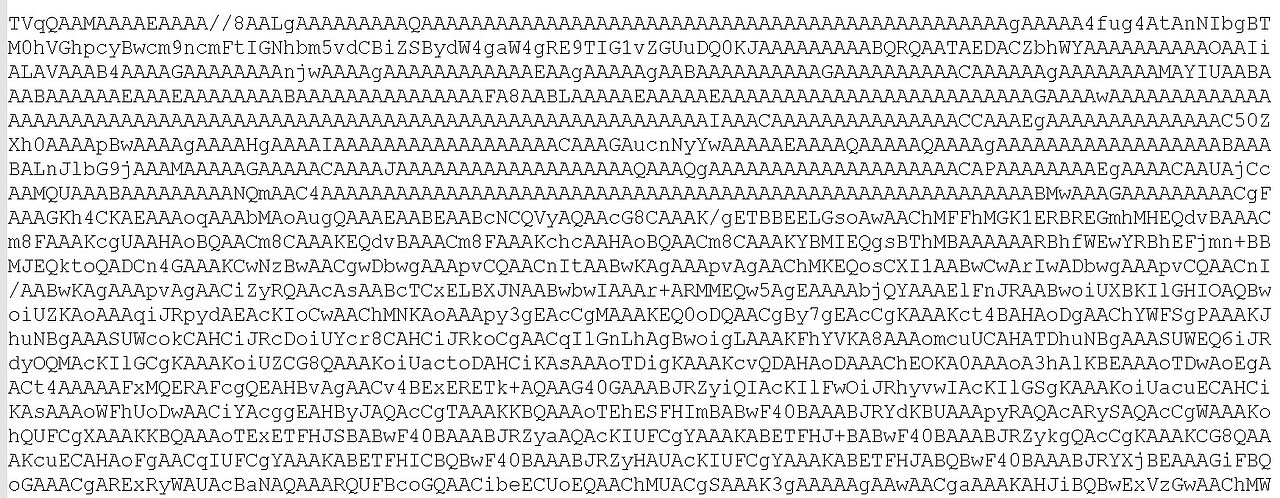

Decoding dllhope.txt[2] (see figure 7) reveals a .NET compiled file named as ClassLibrary3.dll[3] (see figures 8 and 9).

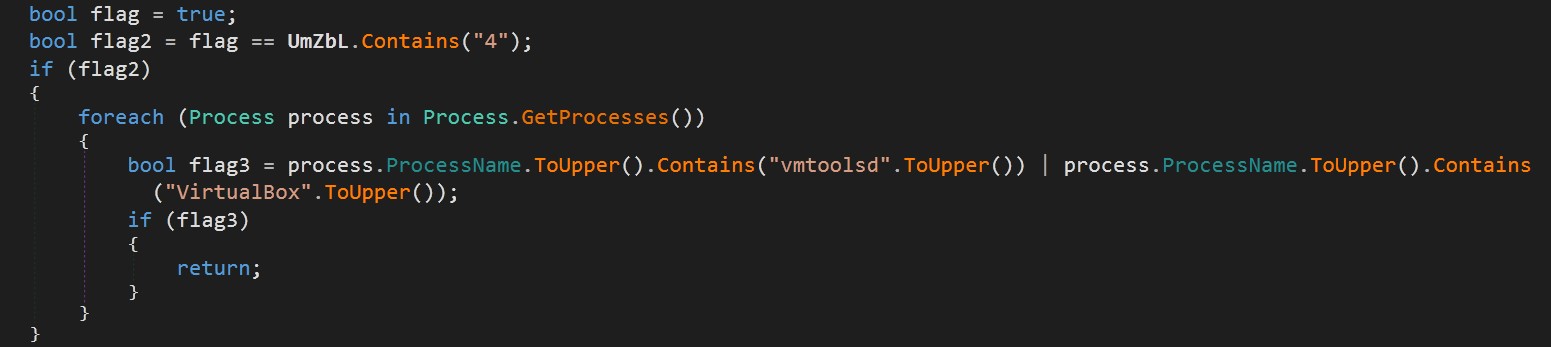

Anti-VM Check

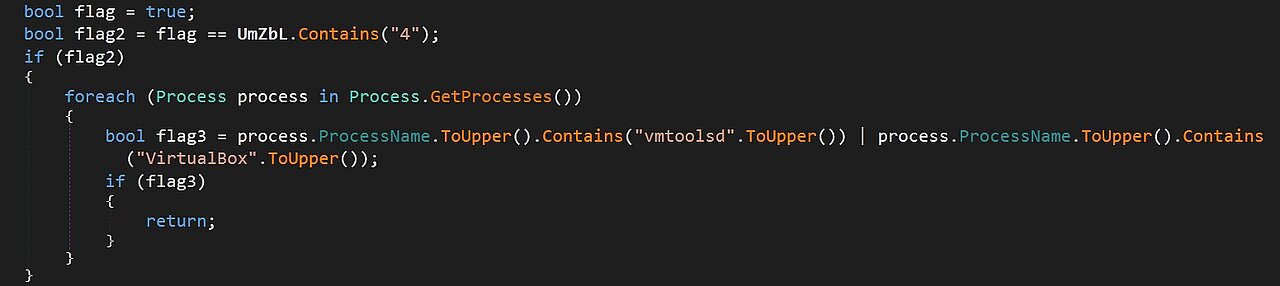

If the flag parameter contains “4”: The code checks for the presence of virtualization tools like VMware or VirtualBox. If any of these processes are running, the method returns immediately, likely to avoid analysis in a sandboxed environment.

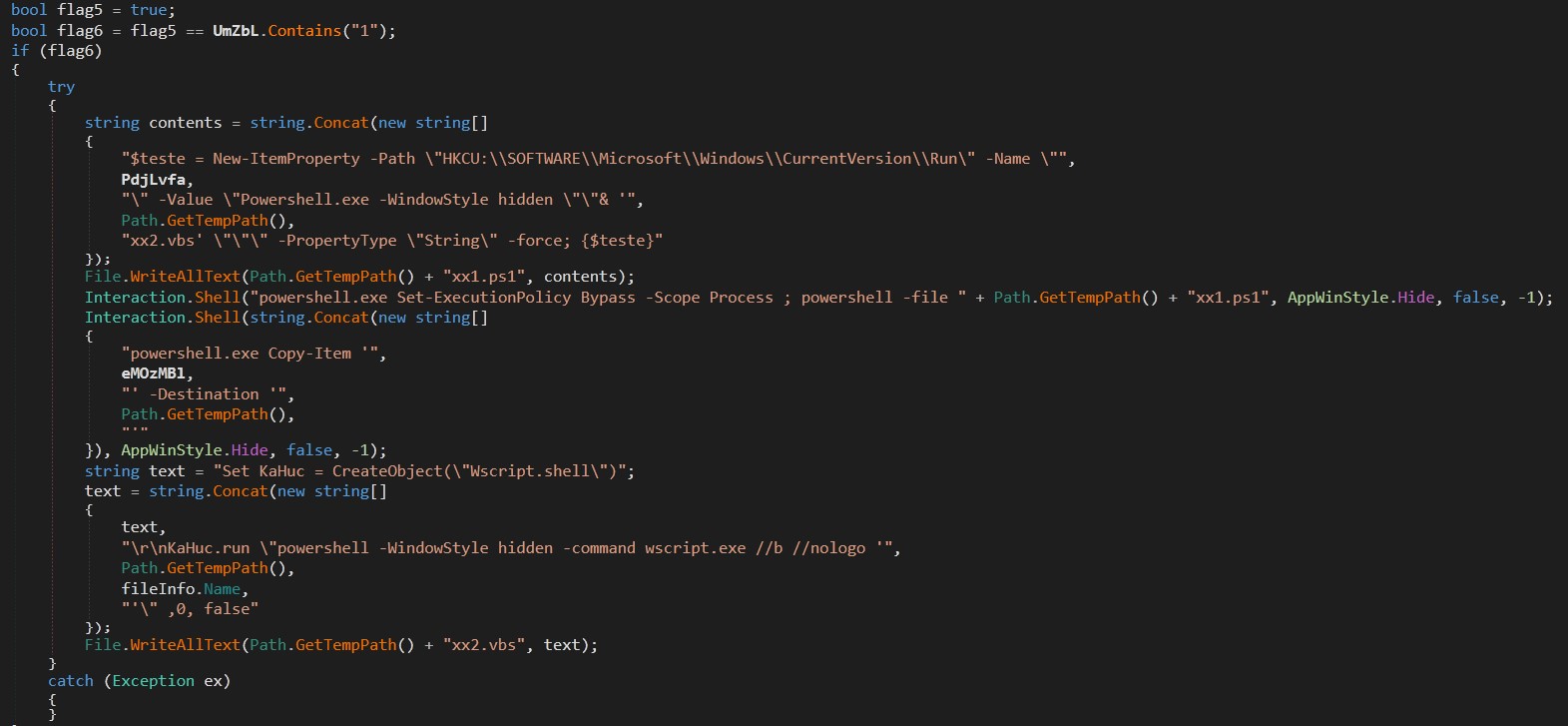

Persistence Mechanisms:

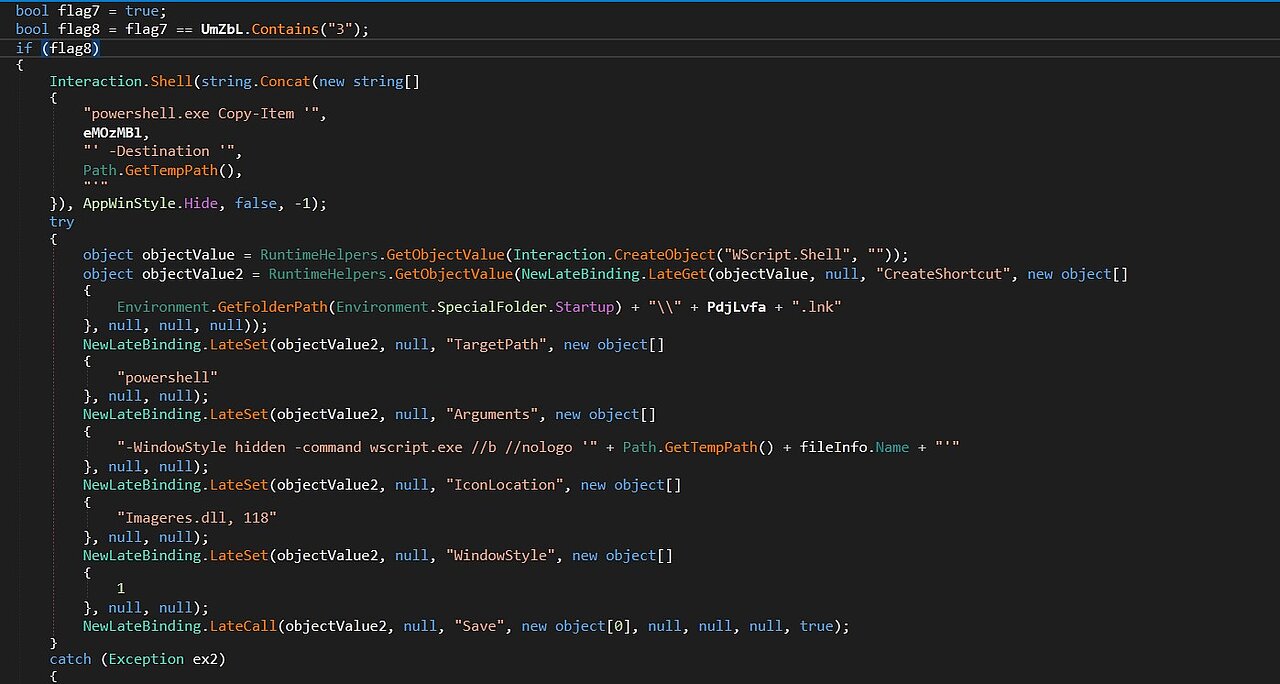

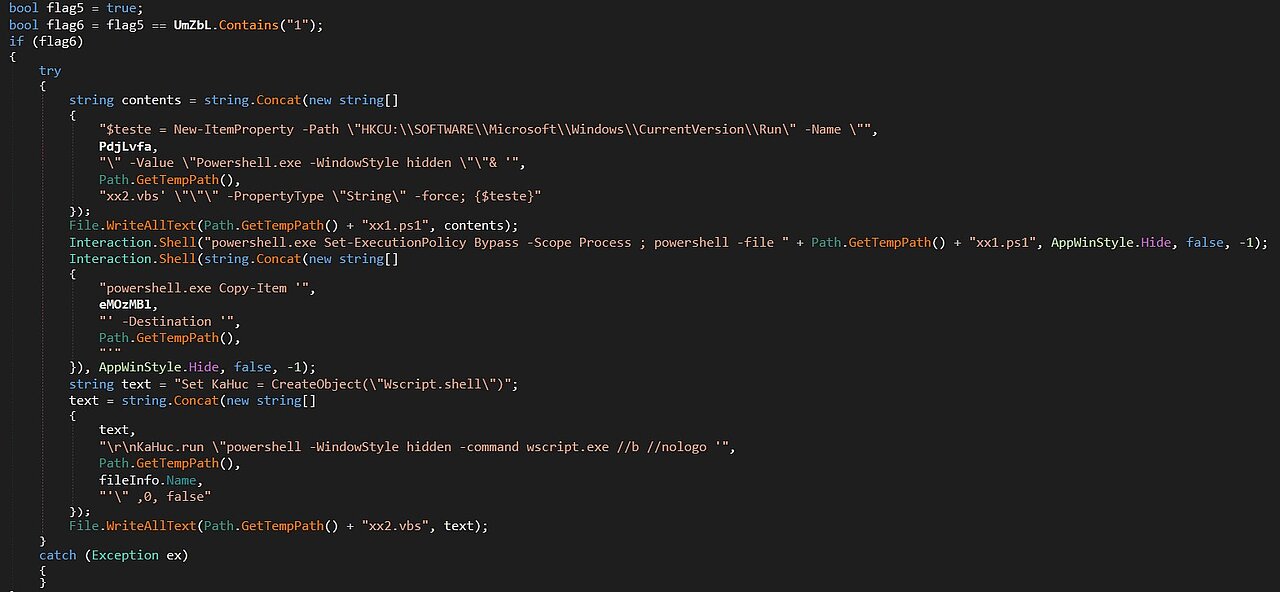

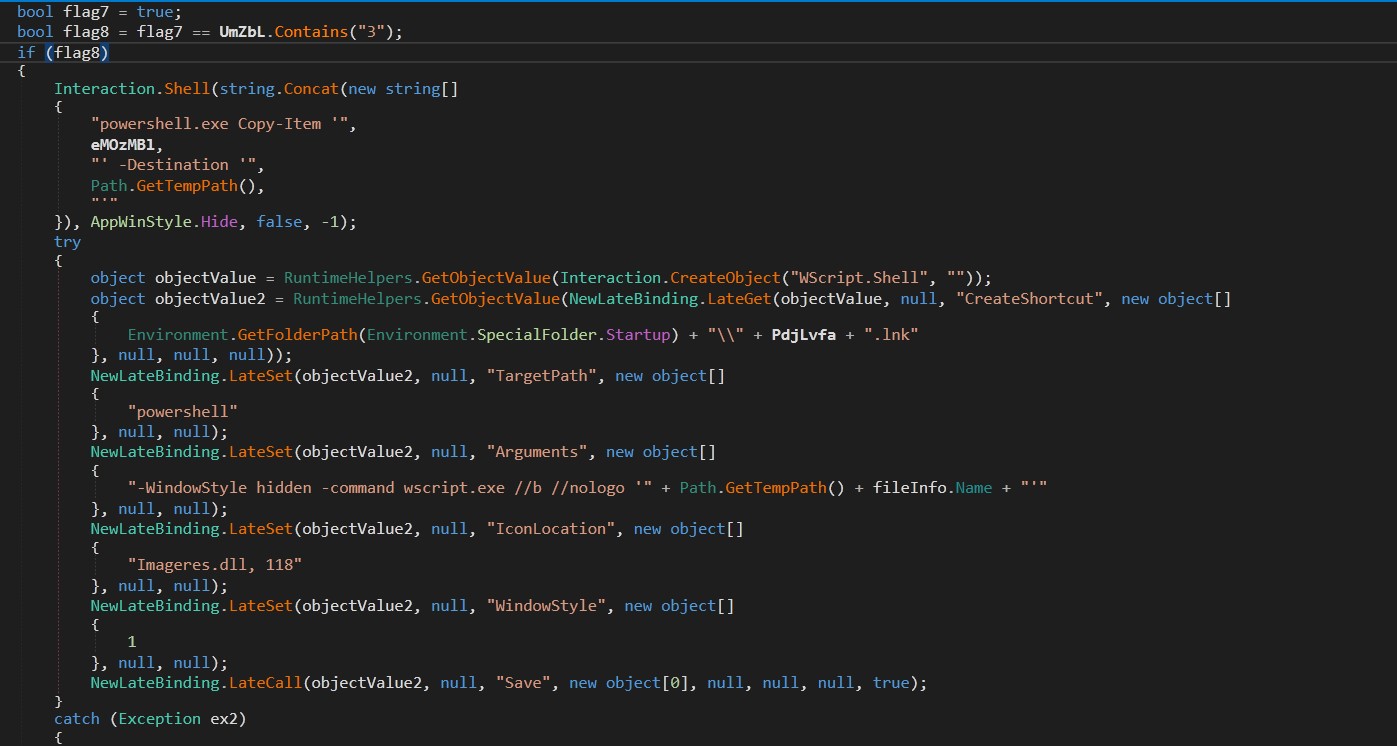

If the flag parameter contains “1”, the code will attempt to establish persistence using two mechanisms: Registry Run Key and Startup Folder Shortcut. A script named “xx1.ps1” creates an entry in “HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run” for persistence while the other script named “xx2.vbs” runs the payload via a hidden PowerShell window. ClassLibrary3.dll[3] creates a shortcut in the Startup folder named PdjLvfa.lnk that points to powershell.exe with arguments to execute itself[1] in a hidden window. This provides an additional layer of persistence.

Payload Download and Execution:

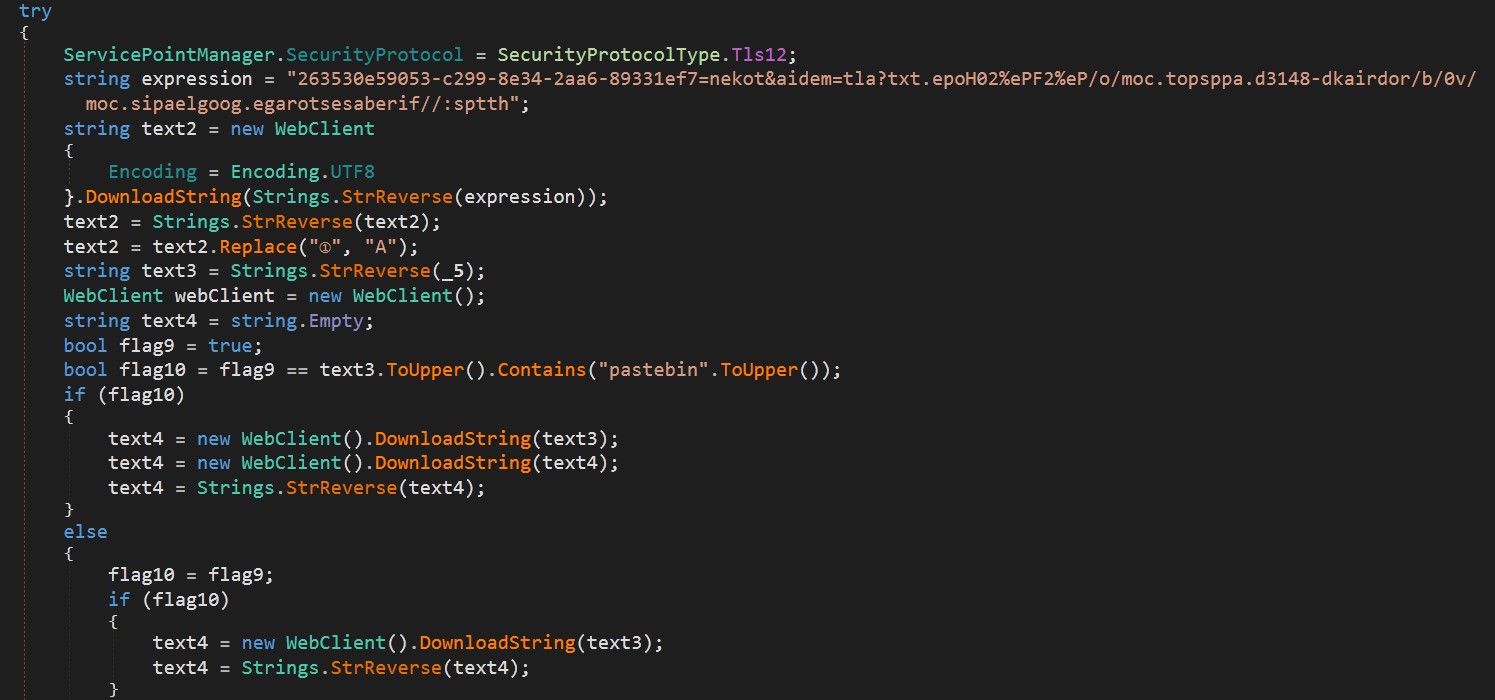

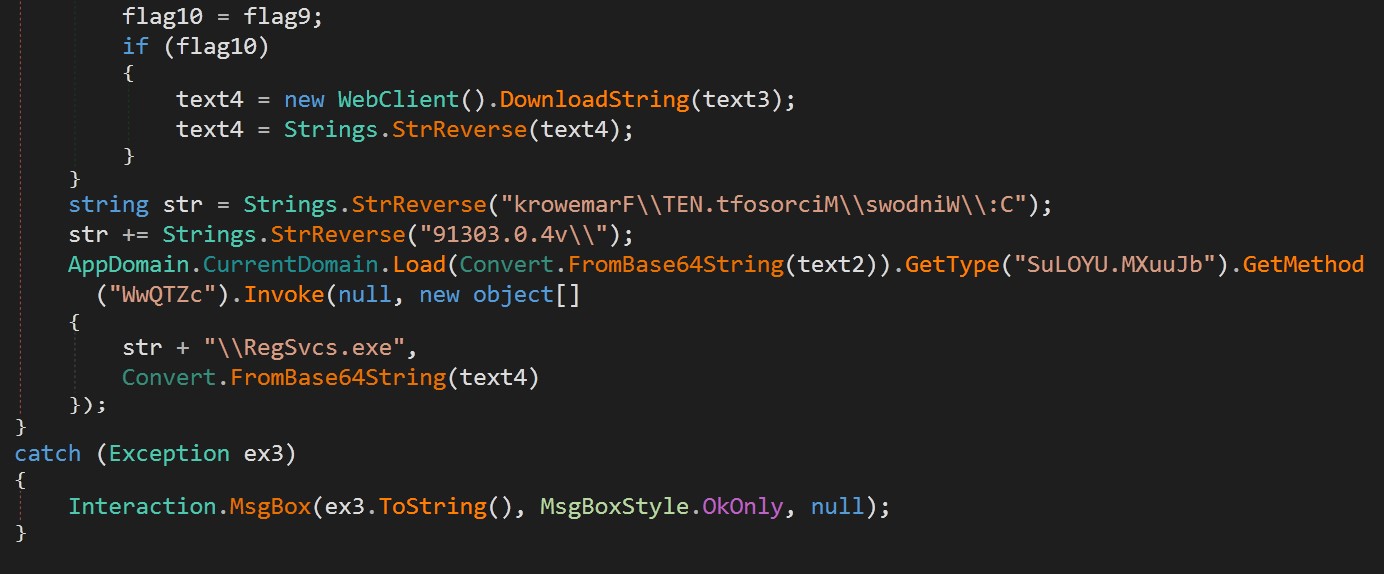

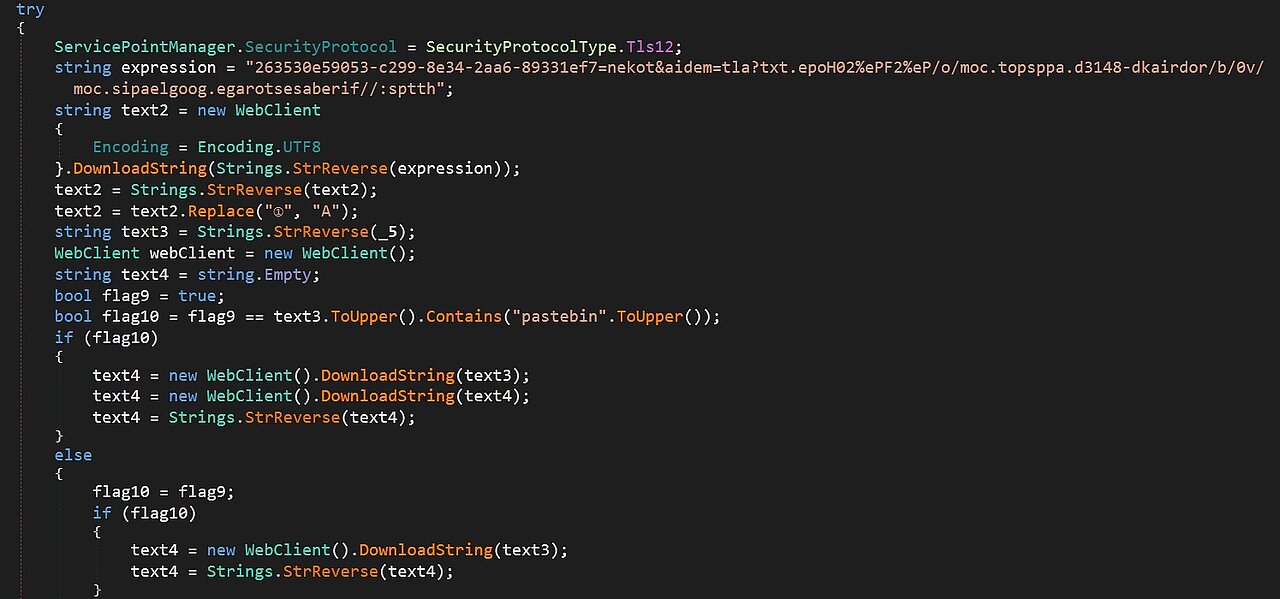

The code downloads another payload from a URL that is constructed by reversing and decoding a string. The AsyncRAT download location is indicated at the end of the PowerShell script (seen in Figure 5): hxxps[:]//bitbucket[.]org/jaiprrfc/sds/downloads/envio4sep[.]txt.

The downloaded payload is then Base64-decoded and loaded into the AppDomain. A method named WwQTZc within the SuLOYU.MXuuJb class of the loaded payload is invoked. This performs process hollowing to RegSvcs.exe to execute AsyncRAT payload.

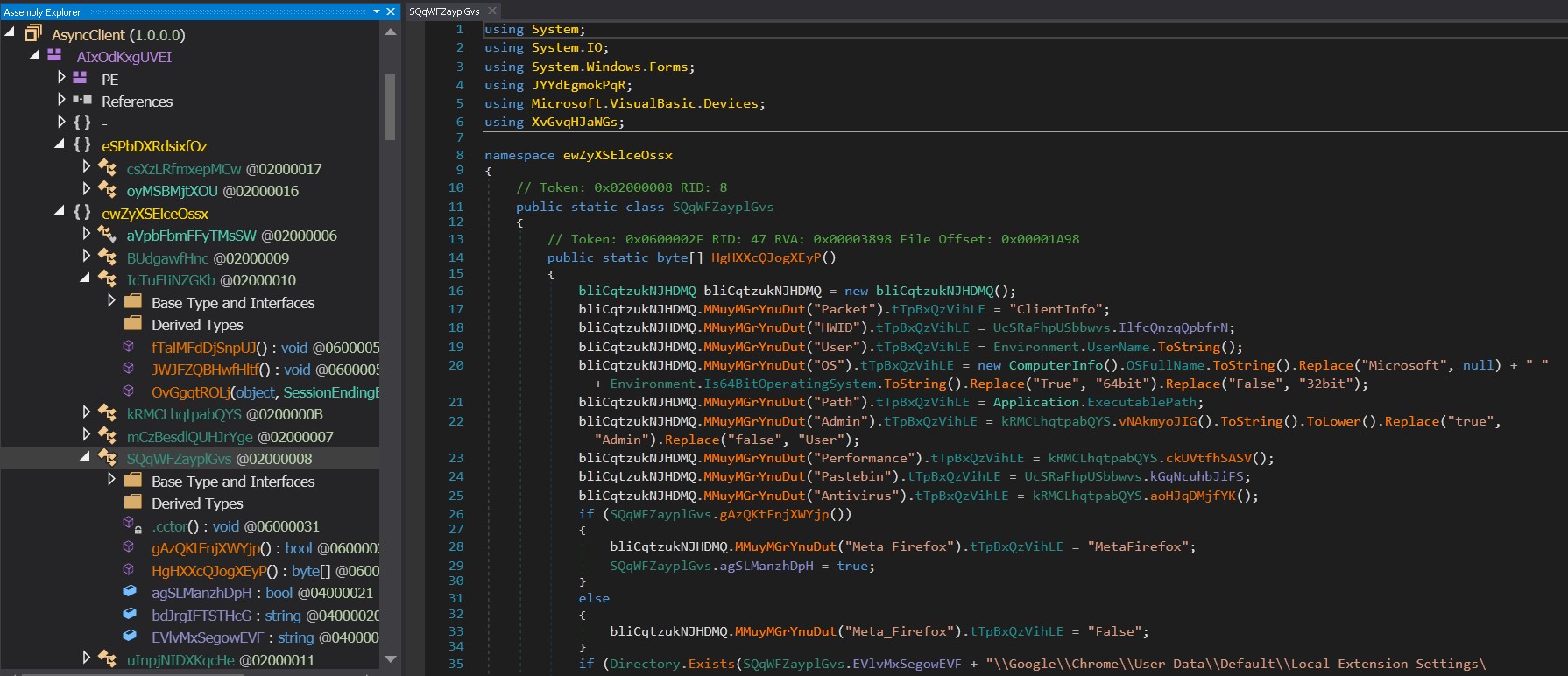

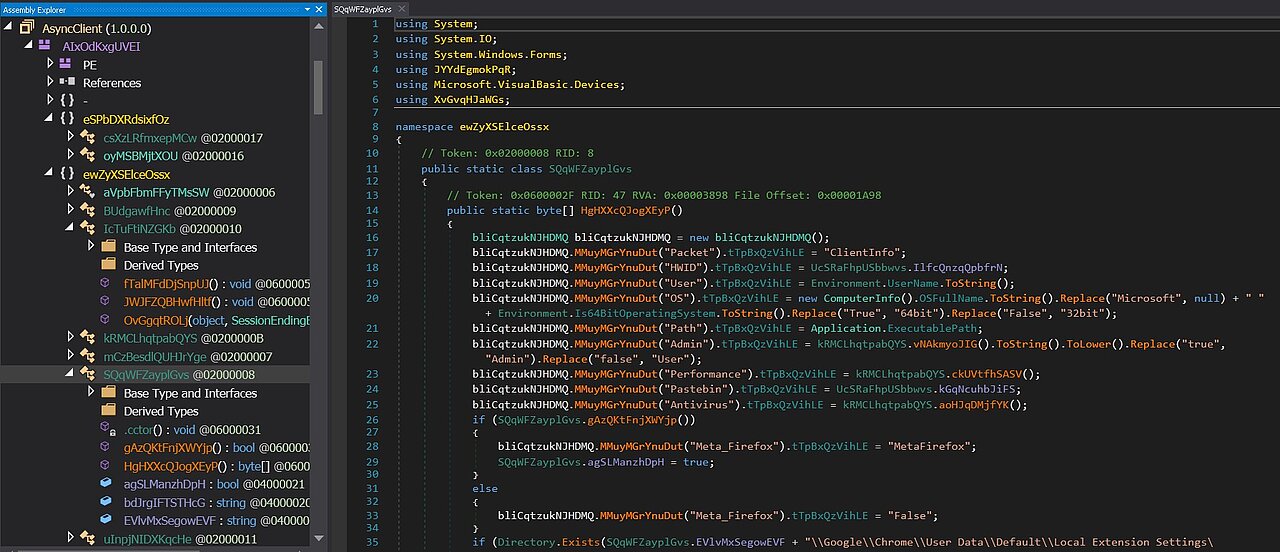

Stage 3: AsyncRAT Payload

AsyncRAT, first appearing in 2013, is an open-source Remote Access Trojan (RAT) written in C#. While initially presented as a remote administration tool, it quickly gained notoriety among cybercriminals for its powerful capabilities and ease of use.

AsyncRAT provides attackers with extensive control over infected machines, enabling them to perform a wide range of malicious activities:

  • Remote Desktop Control: View and control the victim's screen in real-time
  • File Management: Browse, upload, download, and modify files
  • Keylogging: Capture keystrokes
  • Webcam and Microphone Access: Remotely activate the victim's webcam and microphone
  • Process Management: View and terminate running processes
  • Command Execution: Execute arbitrary commands

MITRE ATT&CK TTPs

Tactic

Technique

ID

Execution

Command and Scripting Interpreter: Windows Command Shell

T1059.003

Execution

Command and Scripting Interpreter: PowerShell

T1059.001

Persistence

Boot Autostart Execution: Registry Run Keys / Startup Folder

T1547

Defense Evasion

Obfuscated Files or Information

T1027

Defense Evasion

Masquerading

T1036

Defense Evasion

Deobfuscate/Decode Files or Information

T1140

Defense Evasion

Process Injection

T1055

Defense Evasion

Virtualization/Sandbox Evasion

T1497

Impact

Remote Access Software

T1219

Collection

Input Capture: Keylogging

T1056.001

Collection

Screen Capture

T1113

Exfiltration

Exfiltration Over C2 Channel

T1041

Credential Access

Credential Dumping

T1003

Lateral Movement

Remote Services: Remote Desktop Protocol

T1021.001

Impact

Data Encrypted for Impact

T148

IOCs



SHA256

Filename

8fb6471b01c1d8122548d184ce5bceefae4df4ef0f1d1bb5c67b276c258e9125

01 DEMANDA LABORAL.vbs

E0d40dbc6be121cf62f222295ab1e01b5ce741d37d6c4b53f3beacb38a66e8e8

dllhope.txt

Ab3d8588b58152994d299fa57842798f3071cb0f550b37f1db8b42d56f8580f2

ClassLibrary3.dll

C929354d7972f2595d805507f8896609a7b7aae74566aef9a0a5cb16f36e4fe2

enviosaaa.txt

1826b8379fdfdcd53dec782fb390ed1f5e97ee7ed3b099e8c3eb5b040a992553

Stub.exe



URLS

hXXps[:]//bitbucket.org/jaiprrfc/sds/downloads/envio4sep.txt

hXXps[:]//bitbucket.org/556ghfhgfhgf/fdsfdsf/downloads/dllhope.txt

hXXps[:]//firebasestorage.googleapis.com/v0/b/rodriakd-8413d.appspot.com/o/Pe/PeHope.txt?alt=media&token=7fe13398-6aa2-43e8-992c-35095e035362
