GoTo Meeting loads Remcos RAT via Rust Shellcode Loader

13/05/2024
G DATA Blog

Legitimate applications can unwittingly become conduits for malware execution. This is also the case for recent malware loaders which abuse GoTo Meeting, an online meeting software, to deploy Remcos RAT. Their lures include porn downloads, software setup files as well as tax forms with file names in Russian and English language.

LNK Execution Chain

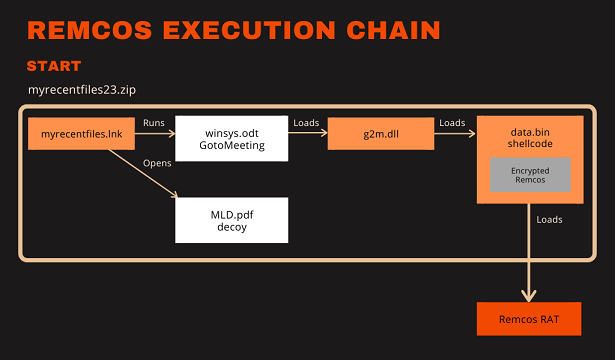

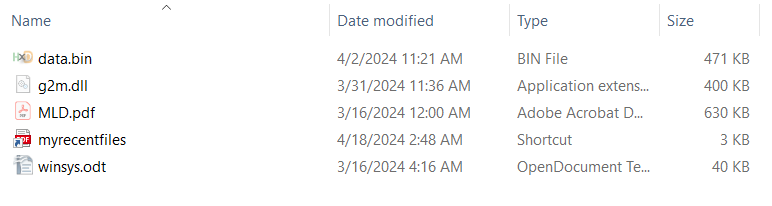

The following image demonstrates the LNK execution chain, taking myrecentfiles23.zip[1] as an example. The start of the chain is myrecentfiles.lnk[6]. The other files are hidden from the user. The windows shortcut myrecentfiles.lnk has a PDF icon.

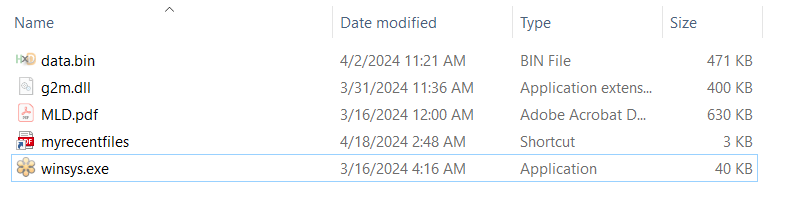

When myrecentfiles.lnk[6] is double-clicked, it will open a harmless PDF file named MLD.pdf[5] and execute winsys.odt[3] at the same time. The winsys.odt is a validly signed GoTo Meeting PE32 file and not malicious.

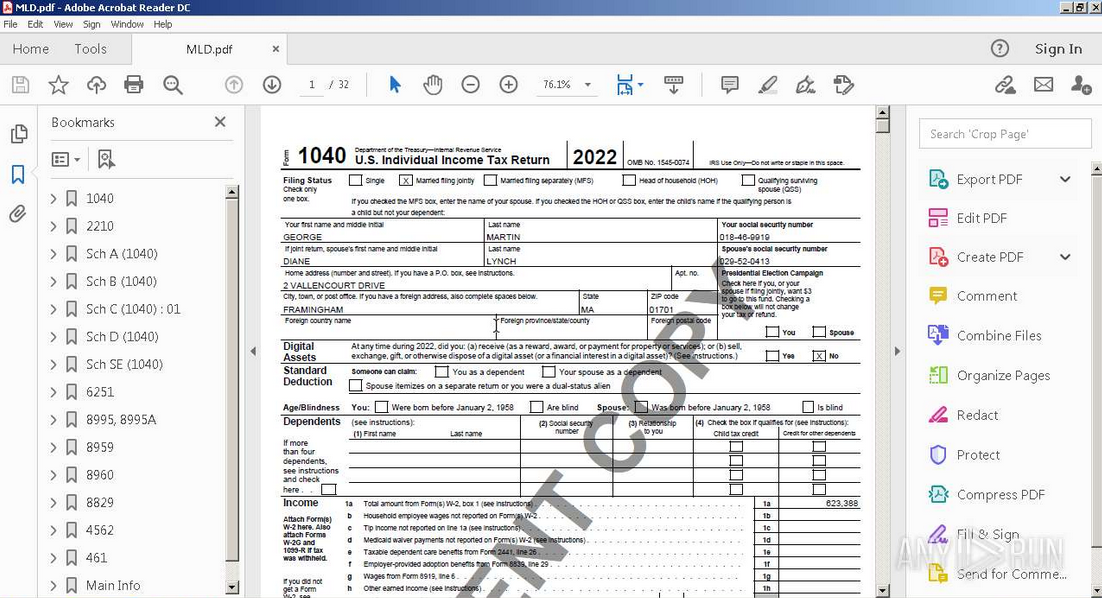

The MLD.pdf[5] is there to lower suspicion that the system has been infected because the user will expect a PDF when they click on a PDF icon. It is questionable how well that works with an outdated tax form from 2022, though.

The GoTo Meeting executable loads a DLL file from the same folder which is named g2m.dll[4]. Under normal circumstances GoTo Meeting would load a clean g2m.dll file, but this infection chain uses DLL sideloading to execute the malware DLL instead.

Rust Loader and Shellcode

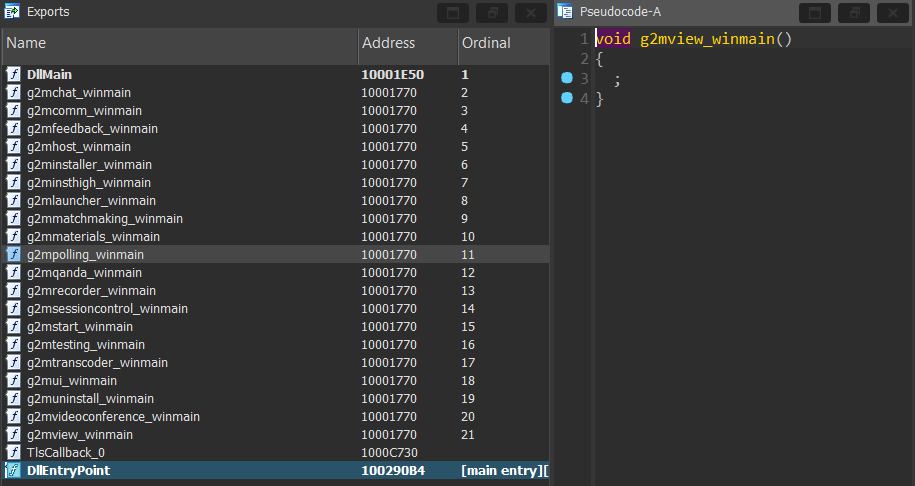

The malware DLL is written in Rust which is discernible by the statically linked Rust libraries. It exports 20 functions for GoTo Meeting but these all lead to the very same address with an empty function. Because the functions are not implemented, the GoTo Meeting executable cannot work, but the DLLMain of g2m.dll[4] will still run and allow the malware loader to execute.

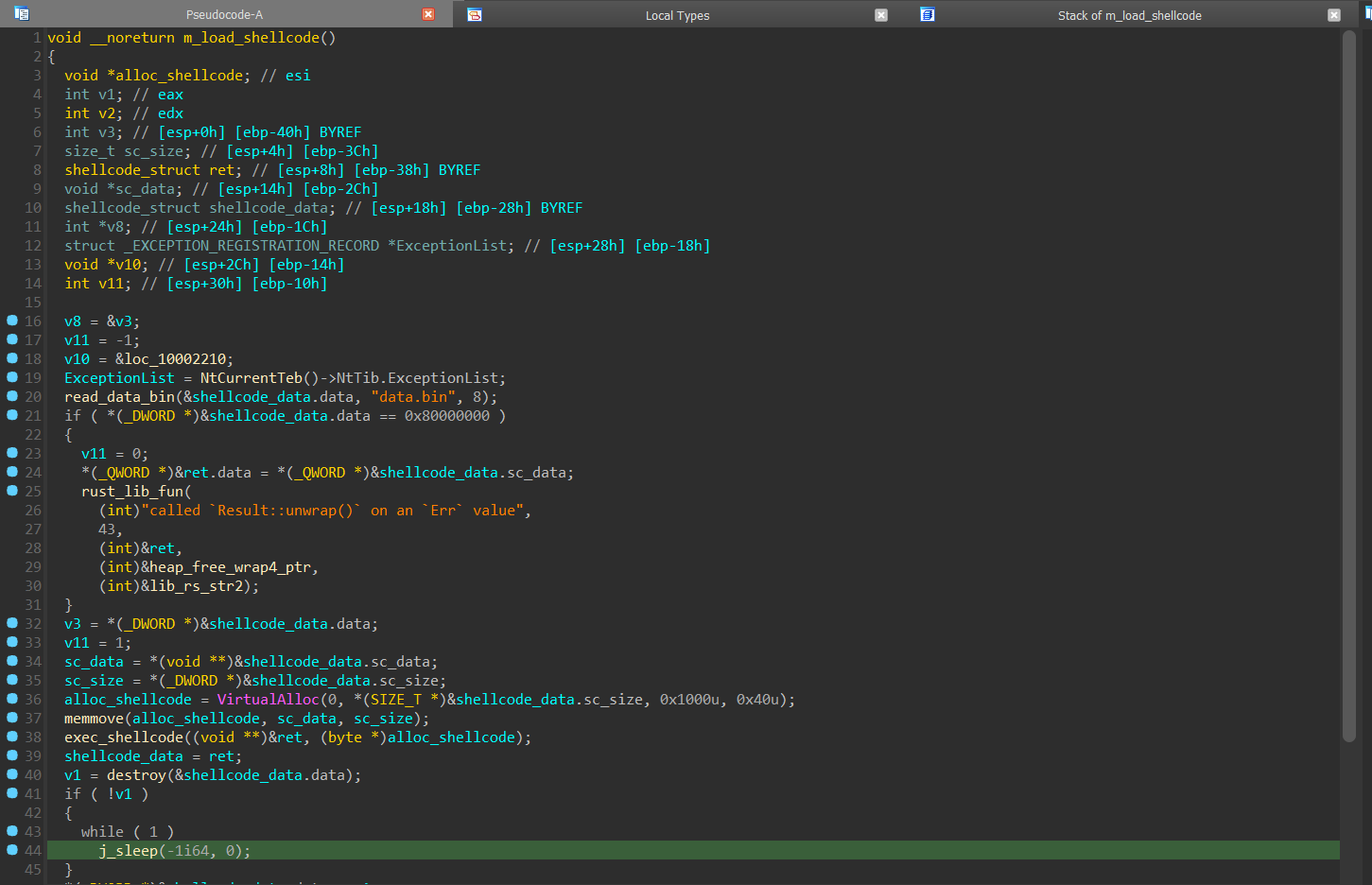

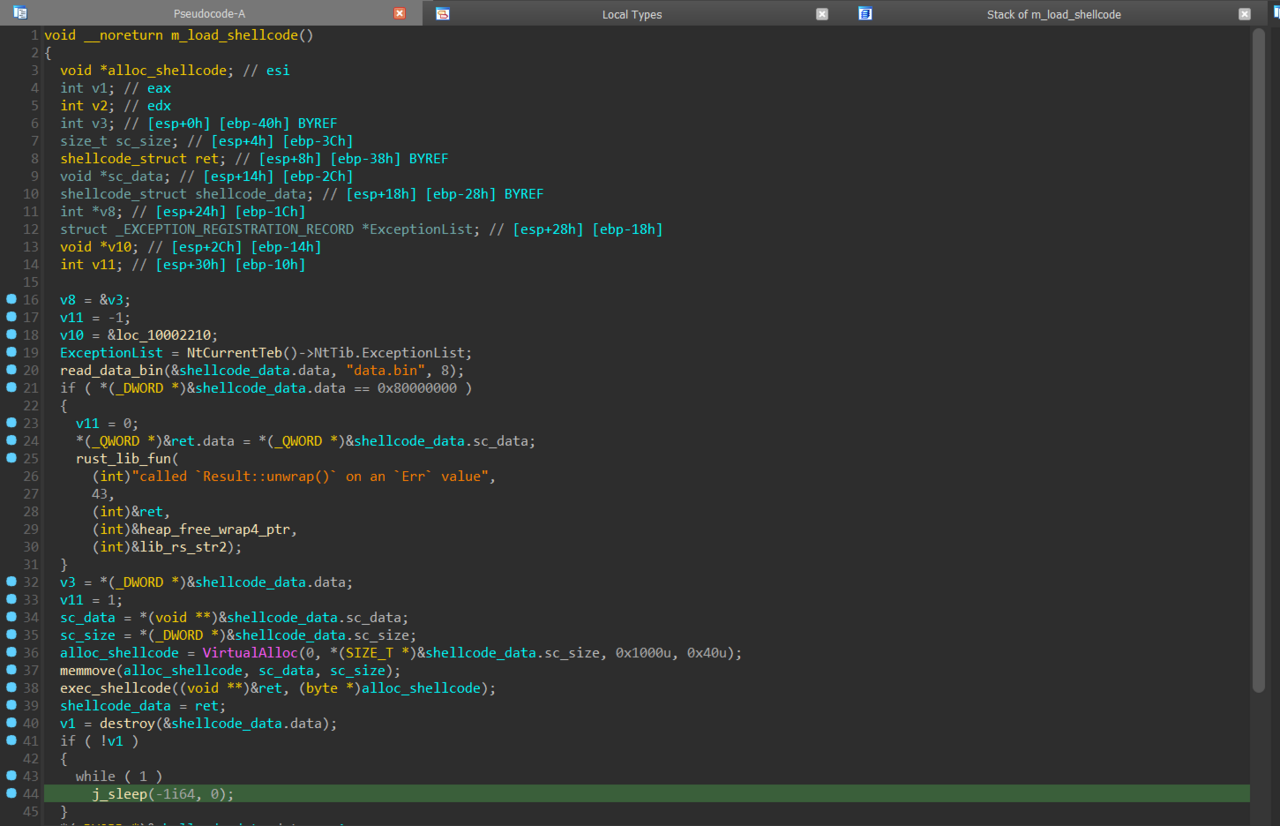

The Rust code reads the data.bin[2] file, allocates RWX memory for it and creates a new thread to execute it (see right image below).

The file data.bin[2] does not only consist of shellcode but also contains the encrypted data for the payload. The shellcode takes care of decrypting and executing the payload.

Speakeasy unpacks the payload with the following command line.



speakeasy.exe -r -a x86 -t data.bin -q 3000 -d dump.zip -o report.txt



The resulting payload is a Remcos RAT executable.

JS Infection Chain

After analysing the LNK execution chain, I started looking for more cases like these via related files on VirusTotal. I discovered initial infectors in various languages and for several target groups just by looking for archives that contain either the same g2m.dll[4] or the same decoy PDF[5] by hash.

Among others I found a fake LeonardoAI2 Setup[14], a fake OnlyFans Livestreams setup[13], fake tax documents[16], fake tax organizers[17] and a Russian ZIP file named Заявка_на_Геоприборы.rar.zip[15] which translates to “application for geodevices”.

Some feature a slightly different execution chain than the previous one, e.g., the JScript file Teen Girl Leak Porn 10.js[7] whose name indicates that it targets porn consumers. The image below visualizes the infection chain for the this JScript file[7] and serves as an example for a different mode of execution.

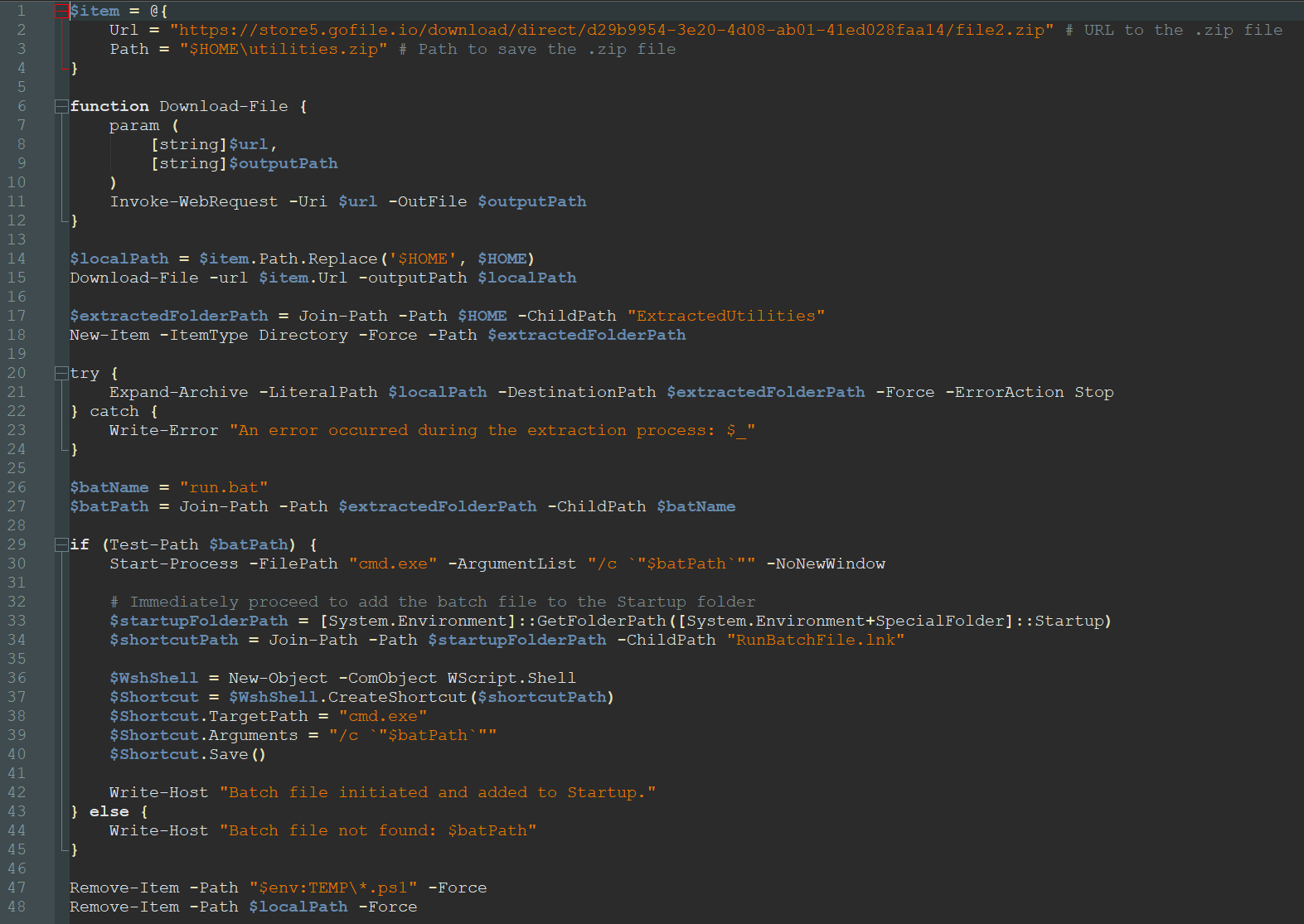

The JScript file starts the chain. It downloads a PowerShell script[9] from rentry.co[8], which is a markdown paste service. The PowerShell script downloads a file2.zip[19] and is responsible for creating persistence via a RunBatchFile.lnk[20] in the startup folder. This windows shortcut executes run.bat[11] from the archive which in turn will start the same execution chain as before.

Utility.exe[3] is the very same GotoMeeting executable as winsys.odt. In fact, the whole archive contains the same files as in the previous execution chain graph except that run.bat[11] is there instead of myrecentfiles.lnk[6] and the MLD.pdf[5].

Indicators of Compromise

The following tables list file hashes and URLs associated with the malicious variant of GoTo Meeting's g2m.dll.

LNK Execution Chain

[1] myrecentfiles23.zip db15a69d0ca99a99a6c6771ab9598bf8d93d29d036eff64f52dc262048bd8e39
[2] data.bin shellcode e8e73adc7ba9f04cc0e1e0f403730ff790a7ff463cda8aaca5cbb6305bb7878e
[3] winsys.odt GotoMeeting executable 796ea1d27ed5825e300c3c9505a87b2445886623235f3e41258de90ba1604cd5
[4] g2m.dll sideloaded shellcode runner 93439fe9b45d7b6e9fcdc5e68fd47677ea17025e4eabb6f1468cb9ae98ee8a5b
[5] MLD.pdf decoy 92fbfa17b4dd1c0353ef4d7bfb5649c3a916c4e2e58303538f83db65cc709b82
[6] myrecentfiles.lnk 8e7eb07f9e6ff4d5e7db3dcf8bcbf909693cce12693a43c1ddd8b221cdf3a9e8

JS Execution Chain

[7] Teen Girl Leak Porn 10.js 0f21a4ba2842f4d7f62fd2c2ca30cacf6aca7b8eaeb9d636c8b1c97ce925e46a
[8] Download URL hxxps://rentry(.)co/puttytest10/raw
[9] raw.ps1 0d7a1679cde49c8c43a7140166c7c5077a20b93ead7359704a48850a13d534e5
[10] Download URL2 hxxps://store5.gofile.io/download/direct/d29b9954-3e20-4d08-ab01-41ed028faa14/file2(.)zip
[11] run.bat 80fb32f8dbf88b78818f619e81a9fc12e3496e2f38a2a8b3a692752c53d38c4d
[3] utility.exe GoTo Meeting executable 796ea1d27ed5825e300c3c9505a87b2445886623235f3e41258de90ba1604cd5
[4] g2m.dll sideloaded shellcode runner 93439fe9b45d7b6e9fcdc5e68fd47677ea17025e4eabb6f1468cb9ae98ee8a5b
[2] data.bin shellcode e8e73adc7ba9f04cc0e1e0f403730ff790a7ff463cda8aaca5cbb6305bb7878e
[19] file2.zip 4ef76b942e041c20fd58858d73b4180688c828608d42604eabf41821981ce997
[20] RunBatchFile.lnk 70f551ccf085df38fec1bbe676814b1ce148a7320a3dfb89b85d975add56edb9

Payload

[12] Unpacked Remcos RAT DLL 15afec306455f3fc70738c6efcb8bca161fda013a8ae4cc4b3a8147741d0cb46

Other Related Files

[13] Setup_Livetreams_Onlyfan.zip 00618af73c6963ea6e002a75c18eb2ea4e7e39b8aaf008e7cf3289c18d46a961
[14] Leonardo_Al2.zip d03d6785ca26c530dd3b43c9d75a576e2b1951523566b5de41aefdca1a9489a4
[15] Заявка_на_Геоприборы.rar.zip 89ba909b743f9dee82f65586b62d258c2fd3992ed7367483f9754d9826912fe7
[16] 2023 Tax Documents.zip 2cf4654964586aa6b4ce844121048e77881bcda3e7d6931e9608d41af3ee68da
[17] MY TAX ORGANIZER.zip b87676d267712ec64e015c7a1aa689cd951a581841db4208a758aa1c0b16b68f
